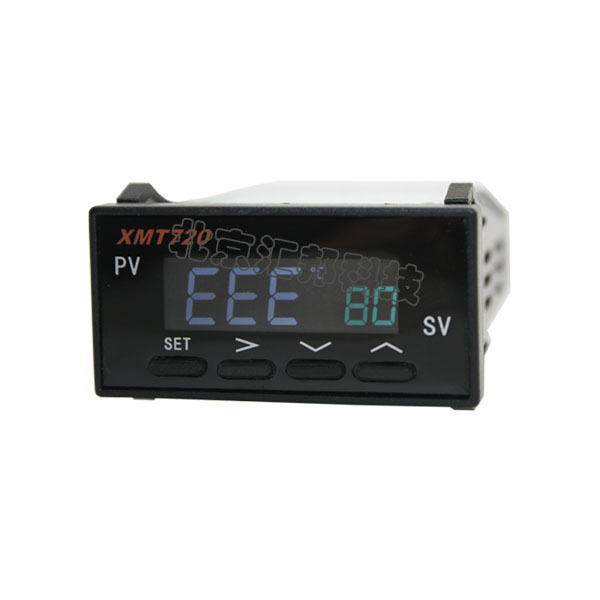

XMT720 intelligent PID temperature controller LCD display

◆ Small size, high performance, full input, especially suitable for small equipment temperature control system

◆ 10 kinds of temperature signal compatible input for thermal resistance and thermocouple, high precision and fast response

◆ Six control modes are available:

0.One relay alarm output

1. One relay contact PID output

2. One relay alarm output; one SSR level non-contact PID output

3. One relay alarm output; one SSR level difference control output

4.One relay relay differential control output

5. One relay deviation alarm output; one SSR level non-contact PID output

◆ PID self-tuning function, automatically adapt to the controlled object

◆ The meter can display the temperature value in degrees Celsius or Fahrenheit

1. Working power: AC / DC85 ～ 260V (other power can be customized)

2. Input signal: thermocouple: T, R, J, B, S, K, E, WRe3-WRe25

Thermal resistance: Pt100, Cu50

3. Power consumption: less than 2W

4. Sampling rate: 4 times / second

5. Overrun display: "EEE"

6. Display color: LED dual display (PV white display, SV green display)

7.Horizontal viewing angle: ≤45 degrees

8. Display range: full range of input signal

9. Basic error: 0.2% FS ± 1 word

10. SSR level: DC 8V / 30mA

11. Contact capacity: AC250V / 3A; DC24V / 5A

12. Operating environment: 0 ～ 50 ℃; ≤ 85% RH

13. Dimension: 48 * 24 * 75mm Opening size: 45 * 22mm
